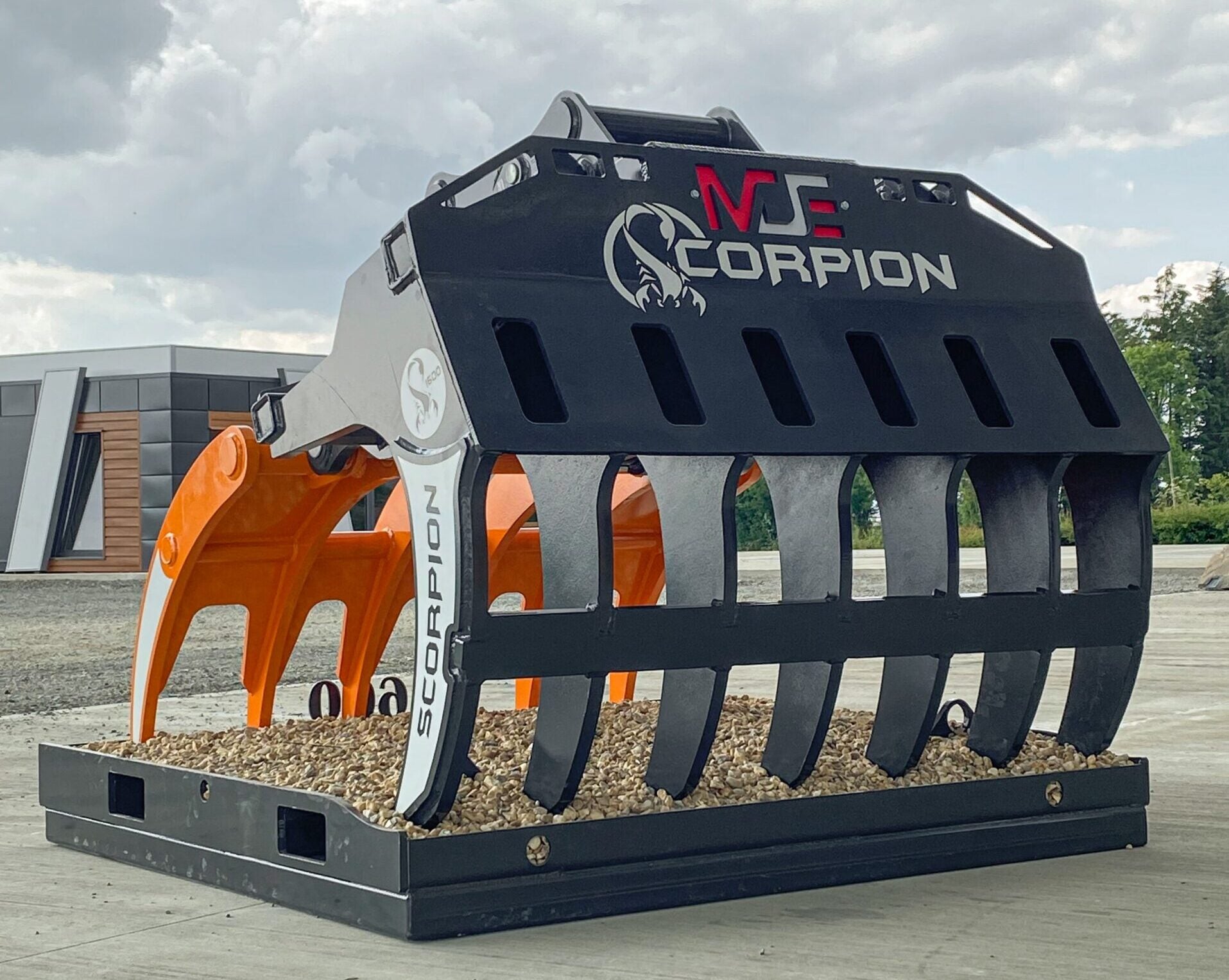

MDE MACHINERY S1600/1600 SCORPION MOUNT
$28,253.00
Skip to product information
Model Scorpion S500 Scorpion S750 Scorpion S900 Scorpion S1000 Scorpion S1100 Scorpion S1600 Scorpion S1900 3 Excavator Weight 3,306lbs - 8,818lbs 8,818lbs - 15,432lbs 17,637lbs - 22,046lbs 22,046lbs - 30,864lbs 30,864lbs - 46,297 lbs 35,274lbs - 66,138lbs 66,138lbs - 110,231lbs Attachment Width 19 ¾ inch 29 ½ inch 35 ½ inch 39 inch 43 ¼ inch 63 inch 74 ¾ inch Teeth Thickness 3/8 inch 5/8 inch ¾ inch 1 inch 1 inch 1 inch 1 inch Teeth Separation 4 inch 6 ¼ inch 7 ? inch 8 inch 9 inch 9 inch 12 ¼ inch Teeth Depth 15 inch 18 inch 22 inch 24 ¾ inch 28 inch 31 ? inch 39 inch Grapple Opening 26 inch 30 ¾ inch 36 inch 39 inch 51 inch 54 ¾ inch 61 inch Attachment Weight 1 275lbs 595lbs 904lbs 1,455lbs 2,249lbs 3,527lbs 6,988lbs Attachment Weight With Teeth 1 350lbs 639lbs 948lbs 1510lbs 2304lbs 3,726lbs N/A Rotation Weight inc. Hitch 2 187lbs 187lbs 295lbs 414lbs 578lbs 730lbs N/A Slew Drive Ring Type SDR-314-001 SDR-314-001 SDR-435-001 SDR-523-001 SDR-600-001 SDR-700-001 N/A Pressure (bar) 150 - 200 150 - 200 150 - 200 200 - 250 200 - 250 200 - 250 200 - 250 Flow (US gallon) 7.92 - 13.20 10.56 - 15.85 10.56 - 15.85 15.85 - 21.13 21.13 - 26.41 21.13 - 26.41 21.13 - 31.70
MDE MACHINERY S1600/1600 SCORPION MOUNT
$28,253.00
