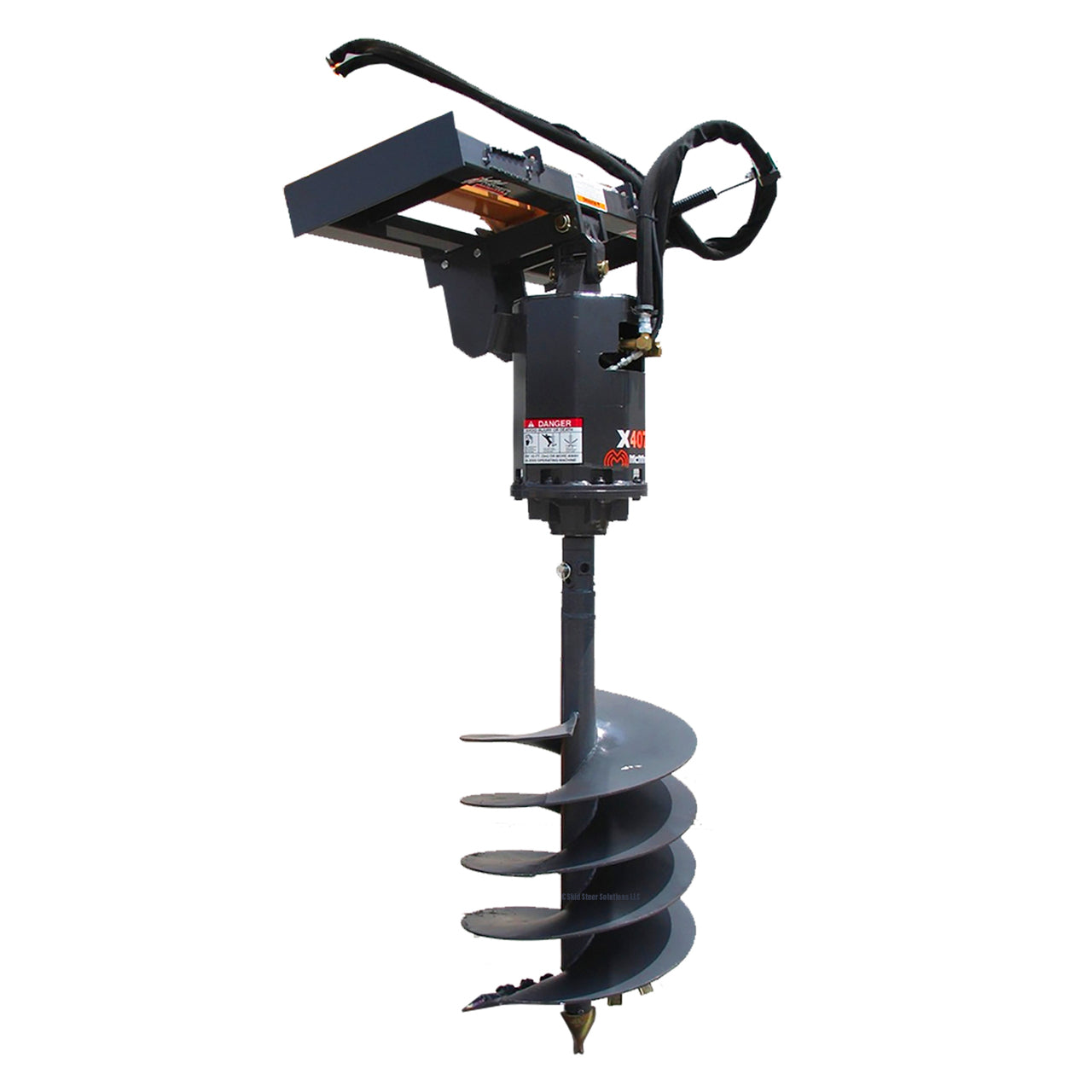

PALADIN 24904/23834/38575/22521/22520/84923
$10,225.00
Skip to product information
Core Specifications Maximum Output Torque : 9,090 lb-ft at 3,500 PSI. Hydraulic Flow Range : 36 – 54 GPM. Maximum Operating Pressure : 3,500 PSI continuous. Maximum Auger Diameter : Supports bits up to 48 inches. Output Shaft : 2.5-inch Hex. Output Speed : 64 RPM at 54 GPM. Physical & Technical Features Drive Weight : Approximately 400 lbs (drive only). Motor Type : 75 Series hydraulic motor with a 6:1 planetary gear reduction. Rotation : Features reverse rotation for quick backout if obstructions are encountered. Protection : Integrated hydraulic relief valve to protect the unit from damage when hitting immovable objects. Maintenance : Completely sealed system with moving components running in oil for constant lubrication
